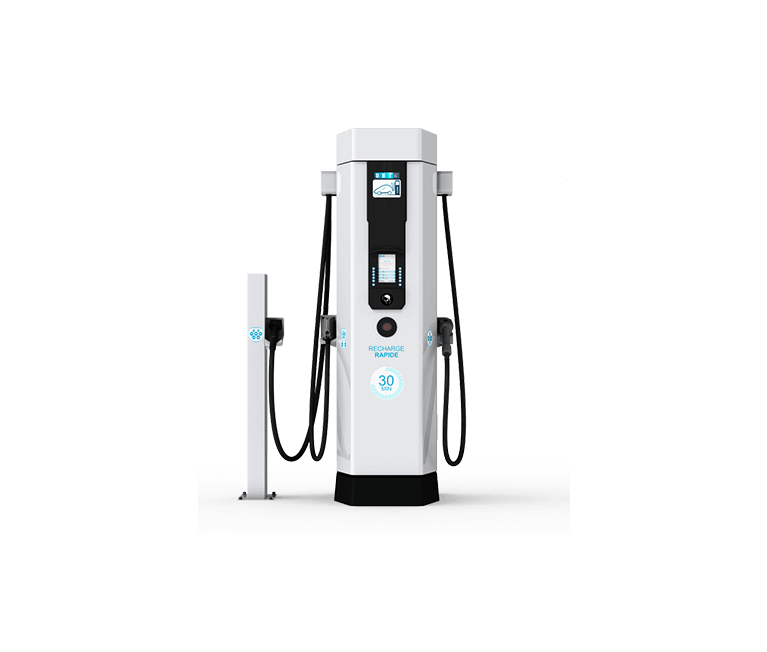

With a power output of 30 kW and a maximum current
rating of 100 A, this charger offers a powerful
charging capability, allowing for faster charging
times and reduced waiting periods. It accommodates a
wide range of electric vehicles, ensuring
compatibility and convenience for EV owners.
The input voltage range of 260V to 475V provides
flexibility for different power supply conditions,
while the 50/60 Hz frequency compatibility allows
seamless integration into various electrical systems.
This charger adapts to different grid configurations,
ensuring optimal performance in diverse charging
environments. The user interface and control features
of this EV charger prioritize safety and convenience.
It includes an emergency stop button, allowing users
to quickly halt the charging process in case of any
unforeseen circumstances. The RFID card charging
functionality enables secure and controlled access to
the charging station, ensuring only authorized users
can utilize the facility.
The OCPP (Open Charge Point Protocol) compatibility of
this charger allows for seamless integration with
existing charging infrastructure and network
management systems. It ensures interoperability and
enables advanced functionalities for charging station
operators, promoting efficient management and
monitoring of charging sessions. With a maximum input
current of 100 A and an output voltage range of
200-750V, this charger offers flexibility to meet the
charging requirements of different electric vehicles.
The power factor of 0.99 at full load ensures
efficient power usage, reducing energy wastage and
maximizing the charging process's effectiveness. The
charger's high efficiency rating of 95% at full load
further contributes to energy optimization, minimizing
power consumption and reducing overall charging costs.
This makes it an environmentally friendly and
cost-effective solution for both residential and
commercial charging applications. The EV charger
features plug and charging functionality, providing a
hassle-free and user-friendly experience. It supports
quick and secure connections, ensuring a reliable
charging process with minimal effort. Equipped with 4G
WiFi connectivity, this charger enables seamless
communication and remote monitoring capabilities. It
allows for real-time data transmission, facilitating
efficient management, and monitoring of charging
sessions. Additionally, the app interface provides
users with convenient access to charging information
and the ability to monitor and control charging
sessions remotely. The EV charger incorporates a
high-quality LCD screen, offering clear and intuitive
displays of charging status, energy consumption, and
other relevant information. This ensures a
user-friendly interface, enhancing the overall
charging experience.
Technical Particulars |
CCS Type 2 60kW Technical Specifications |
|
Input Supply |
3 Phase 415 V AC |
Voltage Range |
415 V AC + 10% |
Rated Frequency |
50Hz |
Frequency Range |
50Hz ± 3% (IS 12360) |
Rated Current |
50 Amp per phase |
Input Power |
~25 – 40 KVA |
Power factor |
>0.95 on full load |
OCPP Protocol |
OCCP 1.6l |
Metering |
DC energy meter with 1% accuracy |
Earthing System |
TN-S |
Weight |
25 Kg |
Dimension |
578X378X160 mm |
No. of Outlets |
Dual (2) |
Vehicle Connector |
IEC-62196 Type 2 combo |
-
